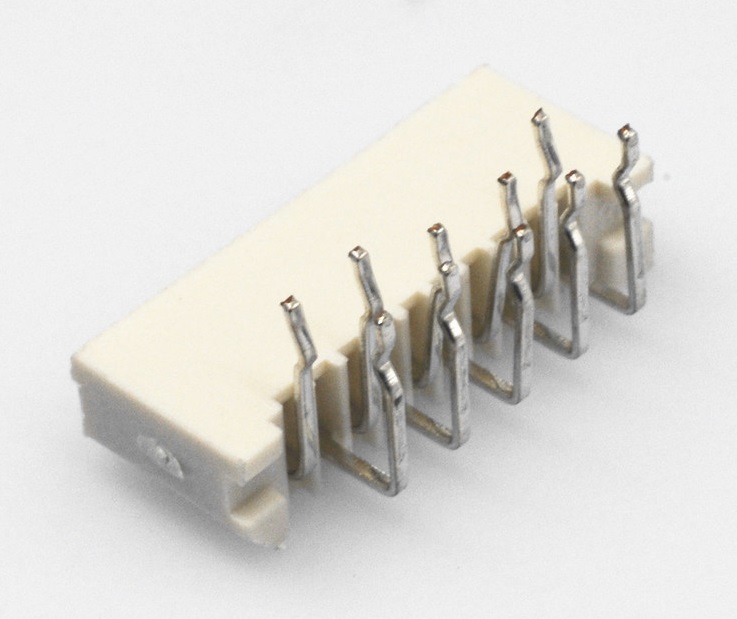

Stable Connection 1.0mm Pitch FPC Connector with Single Side Contact and Bended Pin

0.5mm pitch FPC connector, horizontal, bottom contact, up to 65P, front flip type receptacle, H=2.0mm



Alinta's FPC connector series include  0.5mm, 0.8mm and 1.0mm pitches.





1. Small size, light weight: flat structure, small size, to meet the needs of equipment miniaturization.

2. Easy to install and fix: connector connection can be used, simple and convenient connection, fast, labor-saving and time-saving.

3. High density: the core is arranged tightly and neatly, the transmission information is large, and the space is small.

4. Excellent flexibility: adapt to a variety of high frequency bending, moving parts signal connection. Such as printing first.

5. Folding: can be arbitrarily folded according to the need to meet the connection of different positions and angles.

6. Machinability: the cable surface can be affixed with shielding, conductive, heat insulation, magnetic ring and other conductive materials to adapt to a variety of special use environment.

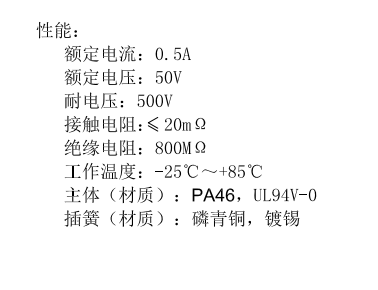

Specification

1. The surface of the plastic parts should be smooth, no rough edges, no obvious shrinkage, cracks or other defects.

2.

2. Temperature range:-40℃ ~ +85℃

3. Rated current:0.5A

3. Rated voltage: 50V, AC/DC

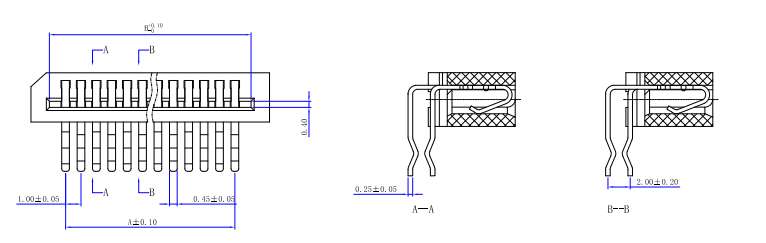

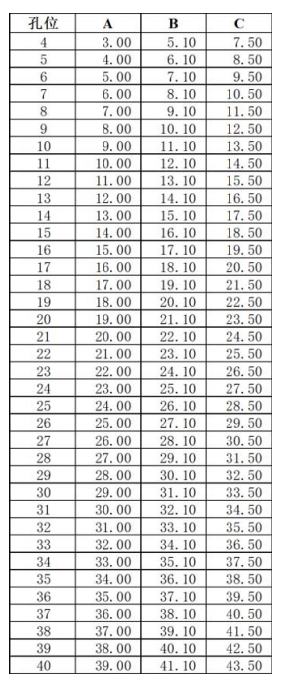

Dimension











Product Tags:

1.0mm Pitch FPC Connector



Bended Pin FPC Connector



Single Side Contact FPC Connector



Stable Connection 1.0mm Pitch FPC Connector with Single Side Contact and Bended Pin Images
