Alinta 3.96mm Pitch 1 to 10P Verticle SMT PCB Connector High Reliability 7A Wafer Connector
Product Descriptiom
A wire-to-board connector is a type of electrical connector used to connect wires to a printed circuit board (PCB). It consists of two main components: the housing and the contacts. The housing is usually mounted on the PCB and contains slots or receptacles where the contacts are inserted. The contacts are typically crimped onto the wires and then inserted into the housing, creating a secure electrical connection between the wires and the PCB.
These connectors are commonly used in various electronic devices and applications where it's necessary to connect wires to a circuit board, such as in computer peripherals, automotive electronics, industrial machinery, and consumer electronics. They come in different sizes, configurations, and specifications to accommodate various wire gauges, current ratings, and environmental conditions.
Alinta Wire-to-Board Connector Series
Discover reliable Wire-to-Board (WTB) connectors and cable assemblies from Alinta, offering pitch sizes ranging from 1.0mm to 6.35mm. Our connectors cater to diverse industries, including automotive, appliances, industrial, data & telecommunications, and consumer electronics.
Benefit from a wide array of advantages with our WTB connectors, making them an optimal choice for various applications. Enjoy the flexibility of customization options to tailor the connectors precisely to your requirements.

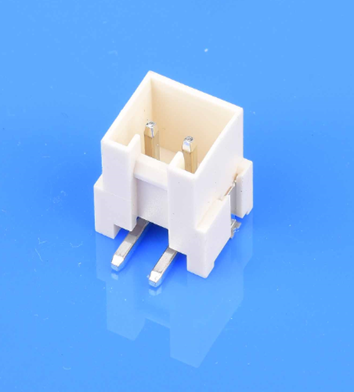

(2 Pin image)
Technical Parameter
| Product Type Features | Category | Wire to Board |
| | Assembly Type | Wafer |
| | Pitch (mm) | 3.96mm |
| | Product Series | AL-X7602-V |
| |
| Electrical characteristics | Rated Voltage (V AC/DC) | 250 |
| | Rated Current (A AC/DC) | 7 |
| | Contact Resistance | ≤30mΩ |
| | Insulation Resistance Withstand Voltage | ≥1000MΩ 1000V AC/Minute |
| |
| Configuration Features | Number of Rows | 1 |
| | Number of Positions | 2~10 |
| |
| Shell characteristics | Color | White |
| | Housing Material Contact Material | LCP, UL94V-0 Brass, tin-plated |
| |
| Environmental Info | Operating Temperature Range (°C) | -20℃~85℃ |

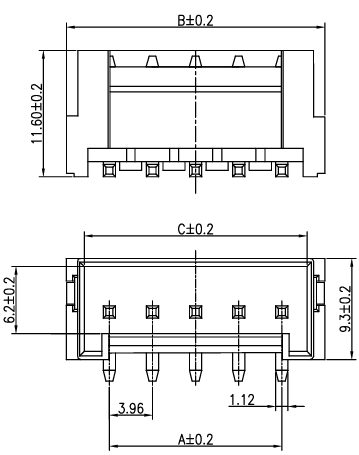

| Customer Drawing
|

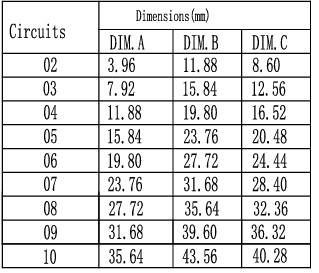

Dimension of X7602-V 3.96mm pitch Verticle SMT type Wafer Connector
